NP38-12B

Yuasa

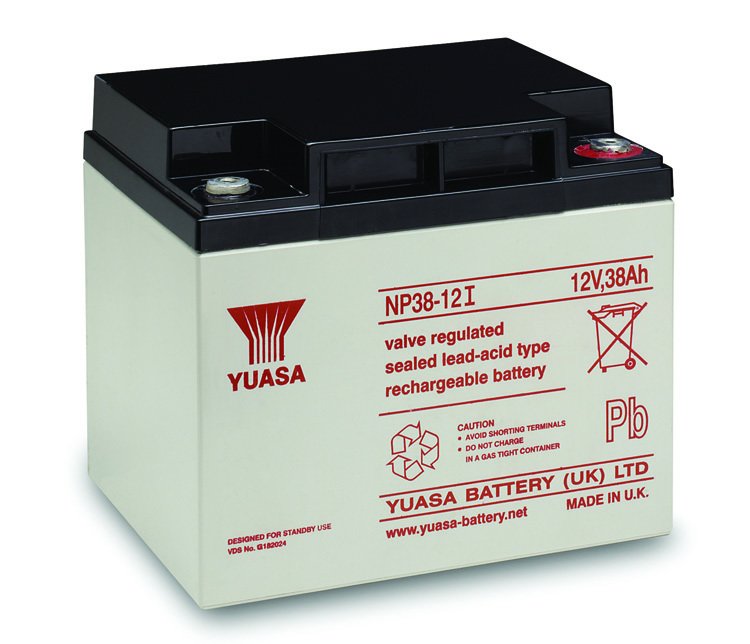

The Yuasa 38Ah Sealed Lead Acid Battery VRLA 12Vdc from the Critical Power Supplies UPS batteries range for use with an uninterruptible power supply or standby power protection system.

Applications.
Yuasa NP batteries, having excellent deep discharge recovery characteristics coupled with long life on float standby, are ideal for numerous applications in both cyclic and standby modes. For advice on the use of NP batteries in your particular application please contact our Sales Office.

Features and Benefits.
Superb recovery from deep discharge.
Electrolyte suspension system.
Gas Recombination.Multipurpose: Float or Cyclic use.Usable in any orientation (except continuous inverted).
Superior energy density.
Lead calcium grids for extended life.
Manufactured World wide.
Application specific designs.
Charging For Float Standby Applications
Charged at 2.275 volts per cell continuous. The battery will seek its own current level and float fully charged. However, users should be aware that when charging from fully discharged, the battery can draw an initial charge current of approximately 2cA. Care should therefore be taken to ensure that this initial charge current (if ungoverned) is within the output capability of the equipment. Final charge current at 2.275 volts per cell is typically between 0.0005cA to 0.004cA.
Charging For Cyclic Applications See cyclic recharge regime graph.

CAUTION- Do not Short Circuit- Do not charge in a sealed container- Service life and operational characteristics will be affected by temperature- AC Ripple reduces service life.

WARNING! The battery must never be installed permanently suspended by their handles; they are not designed for this purpose.

Part Number
NP38-12B

Voltage (V)
12

10 Hr. Capacity (Ah)
38

Dimensions (Inches)
7.74 | 6.50 | 6.89
